Mini Feeder Pillar 400 Amps
MINI FEEDER PILLAR 400AMPS
BRAND: ALAF CEKAL
DESCRIPTION
Defination
- Alternative to the T or breeches joints in low voltage underground system
- Downstream low distribution box to 1600Amps and 800Amps low voltage feeder pillars
- Less space required for installation
- More aesthetically pleasing than conventional feeder fillars
- More easily located than conventional feeder pillars
Construction

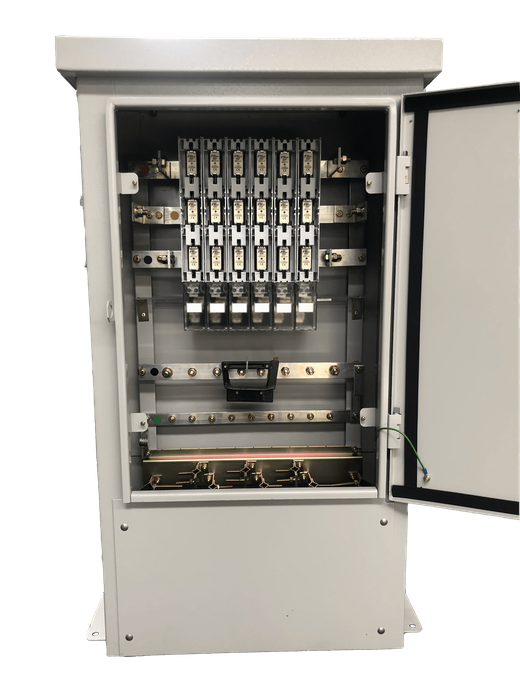

- Busbars with a minimum continuous current rating of 400Amps
- Two (2) terminations for incoming low voltage cables of up to 300mm2
- Six (6) set of outgoing fuse base holders rated at 160Amps
- 18 (6x3) 100 Amps DIN type fuse unit 00SE2

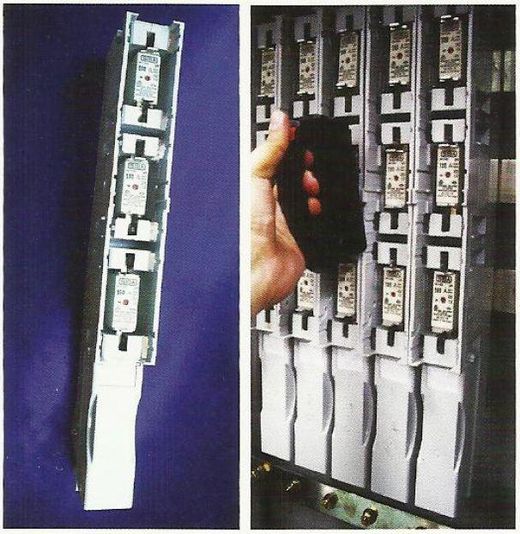

- N4 vertical fuse base with touch proof protection

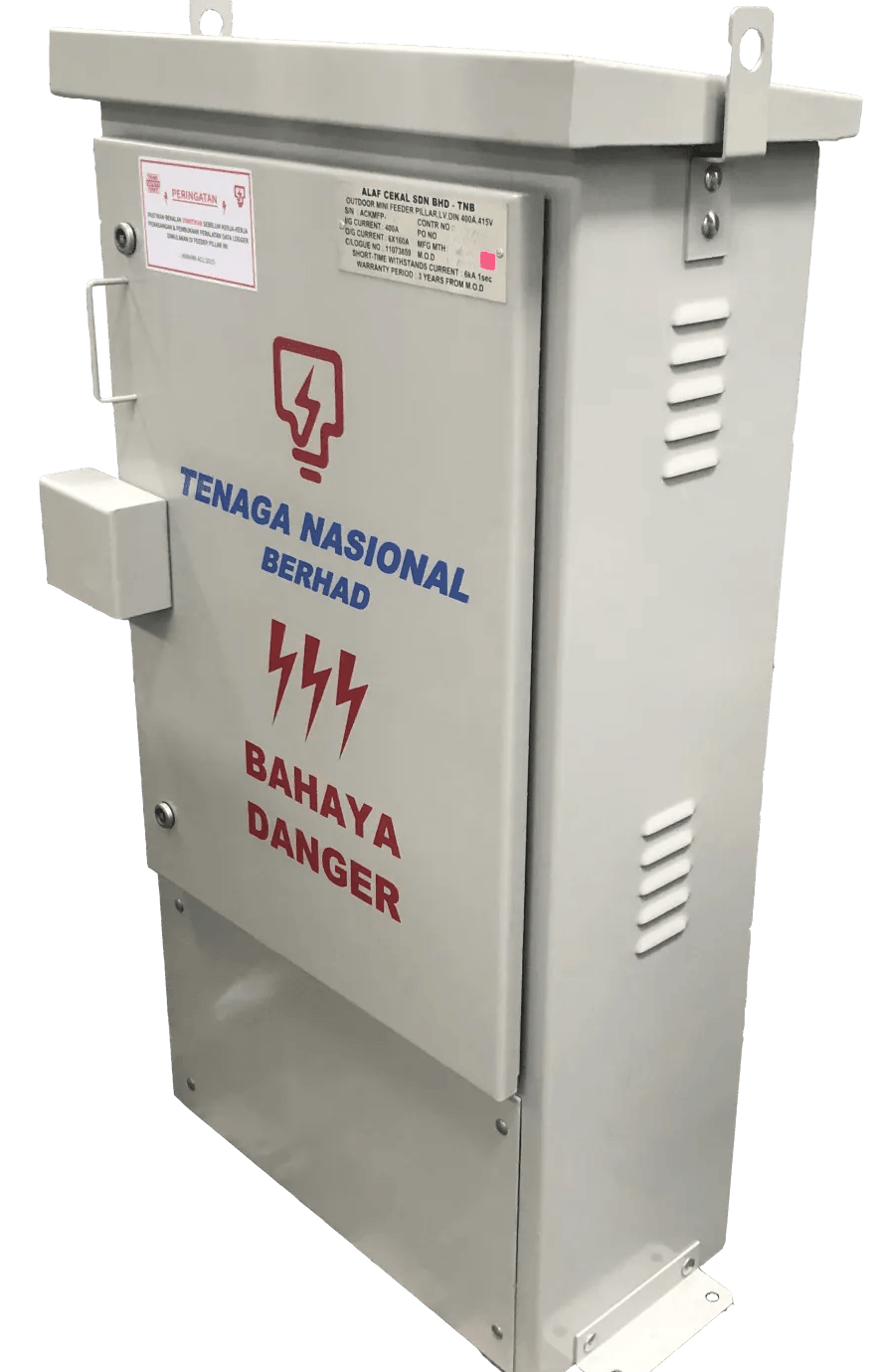

- Galvanized metal mini feeder pillar housing
- Facilities for earthing and clamps for incoming and outgoing cable
- Two (2) hinged, lockable and detechable doors
- Detachable base and bottom use in a tropical zone with maximum ambient temperature of 40 degrees Celcius and a mean annual temperature of 30 degrees with heavy rainfall and humidity of up to 100%
Features
- 600mm (L) x 120mm (H) x 250mm (W)
- Tested to IP54
- Detachable base suitable for outdoor mounting
- Outgoing terminal for 70mm 2 3 core low voltage cables
- Rated operating voltage of 440 volts
- Rated insulation with stand voltage of 1000 volts
- Rated dynamic short circuit strength with fuse link of 6KA.1 sec
- Transparent shrouded
- Lateral snap on type barries for cable terminations
- Fuse Extractor
- Side removable panels for easy maintenance
