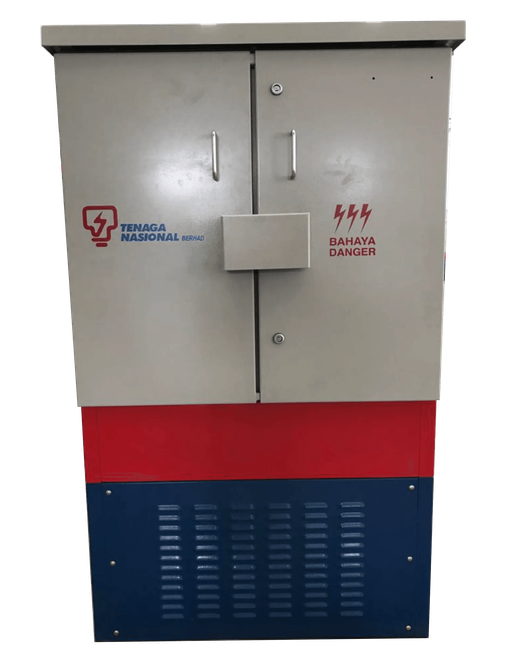

FEEDER PILLAR 800 AMPS
REAL-TIME LOAD READING

BRAND: ALAF CEKAL

DESCRIPTION

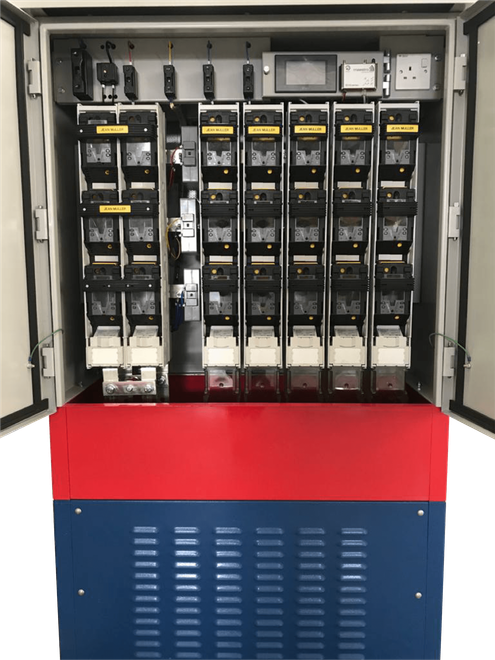

Construction & Features
  • 1 x 2000A rated I/C NH3 Link Switch Disconnector
  • 5 x 400A rated O/G NH2 Fuse Switch Disconnector
  • Tropical 40℃ max, up to 100% humidity

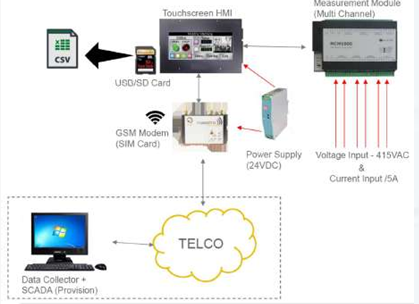

  • Real-time load reading facility, digital meter module, modem
  • Accessible through TNB ILMAS
  • Rated short-time withstand 31.5kA, 3s
  • EG sheet 2.5mm metal housing with detachable base
  • 3 concealed hinged, 2 point camlock, padlockable with 3mm cover
  • 160º door opening
  • IP33 rated
  • Riveted enclosure’s back plate using S/S 304 mono bolts
  • Easy access front & back plate; when doors opened
  • 800A rated 40mm x 10mm tin plated copper busbar system
  • 30mm x 6mm copper for earthing & cable clamp facilities
  • 3 x Class 1, 7.5VA, 800/5A for busbar
  • 3 x Class 1, 5VA, 400/5A for each O/G FSD
  • 4C 300mm2 XLPE x 2 cables up to 1C 500mm2 PVC x 7 cables for I/C
  • Up to and incl. 4C 300mm2 XLPE cable for O/G
  • 600mm (L) x 120mm (H) x 250mm (W)

Standards
  • IEC 61439-1:2011 Low voltage switchgear and controlgear assemblies - Part1:Type tested and partially type tested assemblies
  • IEC 61439-5:2016 Low voltage switchgear and controlgear assemblies - Part5:Assemblies for power distribution in public networks
  • IEC 60947-1:2007+A2:2014 Consolidated version Low-voltage switchgear and controlgear - Part 1:General Rules
  • IEC 60947-3:2008+A1:2012+A2:2015 Low Voltage switchgear and controlgear - Part 3:Sw., disconn., sw.-disconn. and fuse- combination units
  • IEC 60269-1:2006+A1:2009+AD2:2014 Low voltage fuses - Part 1:General requirements
  • IEC 60269-2:2013+A1:2016 Low voltage fuses - Part 2:Supplementary requirements for fuses for use by authorized persons
  • IEC 61869-1:2007 Instrument transformers - Part 1:General requirement
  • BS 1363-2:2016 13A plugs, socket outlets, adaptors and connection units. Specification for 13A switched and unstitched socket- outlets
  • BS EN ISO 17834:2003 Thermal spraying. Coatings for protection against corrosion and oxidation at elevated temperature
  • IEC 60529:1989+A1:1999+A2:2013 Degrees of Protection provided by enclosures (IP Code)

Type Test
  • Short Circuit Test
  • Temperature Rise Test
  • IP33 Test
  • Link and Fuse Switch Disconnector type tested as per IEC 60947
  • CT short-time current, temperature rise, determination of errors as per IEC 61869-1
