Feeder Pillar 1600 Amps RTLR
FEEDER PILLAR 1600 AMPS REAL-TIME LOAD READING
BRAND: ALAF CEKAL

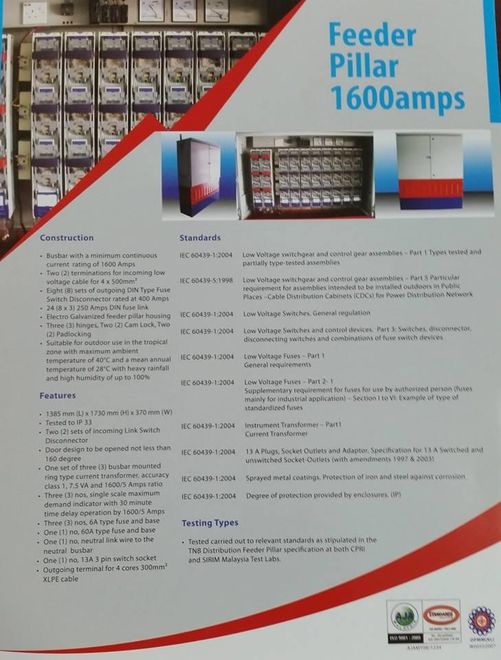

DESCRIPTION

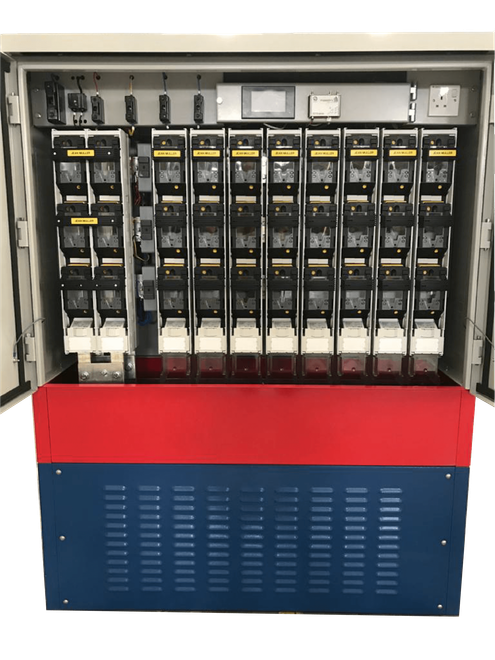

Construction & Features
- 1 x 2000A rated I/C NH3 Link Switch Disconnector
- 8 x 400A rated O/G NH2 Fuse Switch Disconnector
- Tropical 40℃ max, up to 100% humidity
- Real-time load reading facility, digital meter module, modem
- Accessible through TNB ILMAS
- Rated short-time withstand 31.5kA, 3s

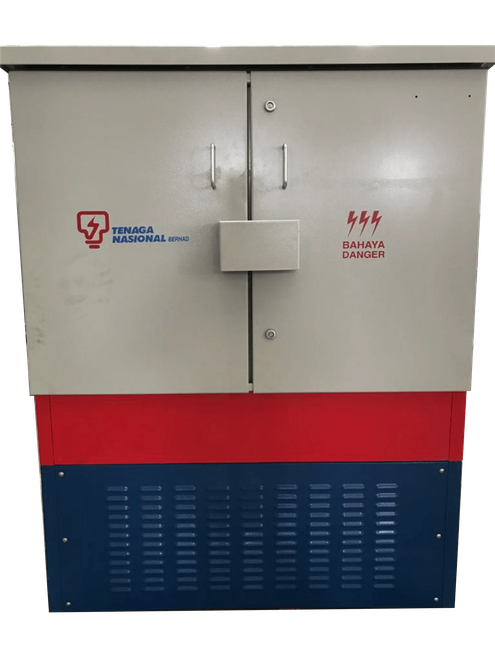

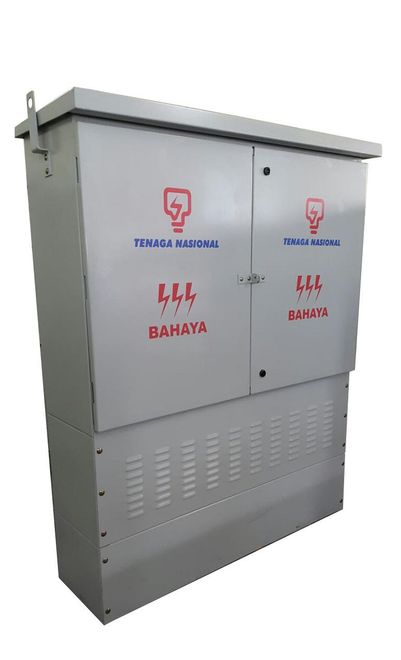

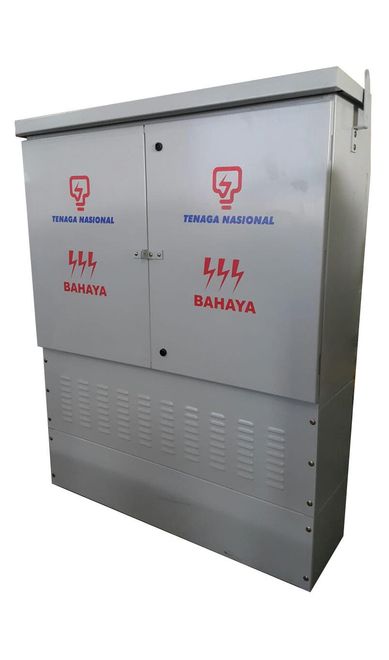

- EG sheet 2.5mm metal housing with detachable base
- 3 concealed hinged, 2 point camlock, padlockable with 3mm cover
- 160º door opening
- IP33 rated
- Riveted enclosure’s back plate using S/S 304 mono bolts
- Easy access front & back plate; when doors opened
- 1600A rated 80mm x 10mm tin plated copper busbar system
- 30mm x 6mm copper for earthing & cable clamp facilities
- 3 x Class 1, 7.5VA, 1600/5A for busbar
- 3 x Class 1, 5VA, 400/5A for each O/G FSD
- 4C 300mm2 XLPE x 2 cables up to 1C 500mm2 PVC x 7 cables for I/C
- Up to and incl. 4C 300mm2 XLPE cable for O/G
- 600mm (L) x 120mm (H) x 250mm (W)
Standards
- EC 61439-1:2011 Low voltage switchgear and control gear assemblies - Part1:Type tested and partially type tested assemblies
- IEC 61439-5:2016 Low voltage switchgear and control gear assemblies - Part5:Assemblies for power distribution in public networks
- IEC 60947-1:2007+A2:2014 Consolidated version Low-voltage switchgear and control gear - Part 1:General Rules
- IEC 60947-3:2008+A1:2012+A2:2015 Low Voltage switchgear and control gear - Part 3:Sw., disconn., sw.-disconn. and fuse- combination units
- IEC 60269-1:2006+A1:2009+AD2:2014 Low voltage fuses - Part 1:General requirements
- IEC 60269-2:2013+A1:2016 Low voltage fuses - Part 2:Supplementary requirements for fuses for use by authorized persons
- IEC 61869-1:2007 Instrument transformers - Part 1:General requirement
- BS 1363-2:2016 13A plugs, socket outlets, adaptors and connection units. Specification for 13A switched and unstitched socket- outlets
- BS EN ISO 17834:2003 Thermal spraying. Coatings for protection against corrosion and oxidation at elevated temperature
- IEC 60529:1989+A1:1999+A2:2013 Degrees of Protection provided by enclosures (IP Code)
- Short Circuit Test
- Temperature Rise Test
- IP33 Test
- Link and Fuse Switch Disconnector type tested as per IEC 60947
- CT short-time current, temperature rise, determination of errors as per IEC 61869-1
