Feeder Pillar 1600 Amps
FEEDER PILLAR 1600AMPS
BRAND: ALAF CEKAL
DESCRIPTION
Construction
- Busbar with a minimum continuous current rating of 1600 Amps
- Two(2) terminations incoming low voltage cable for 4 x 500mm²

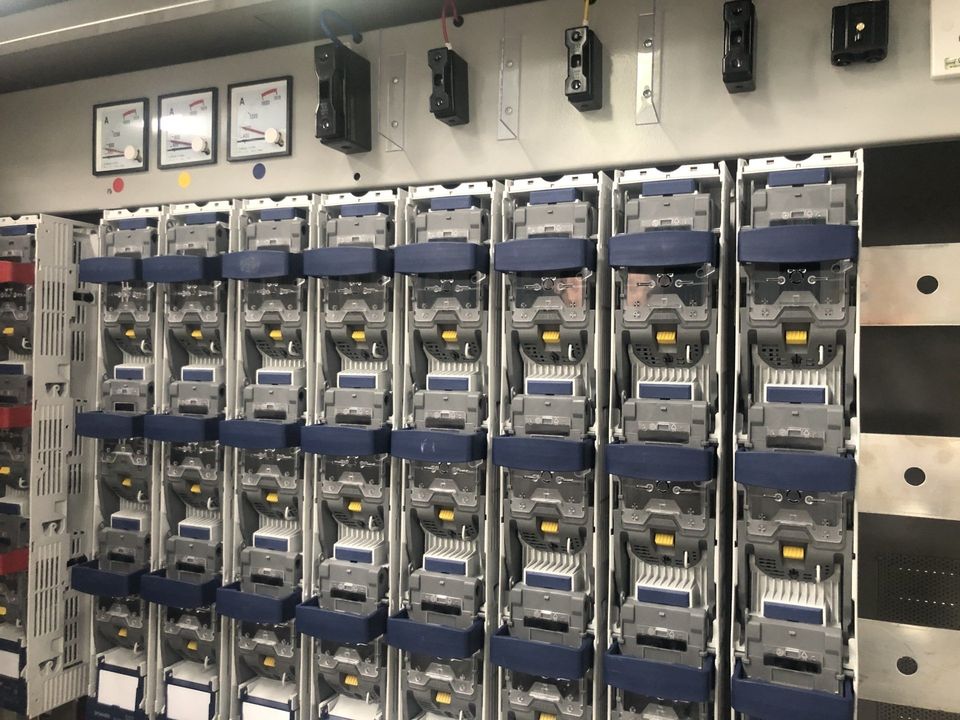

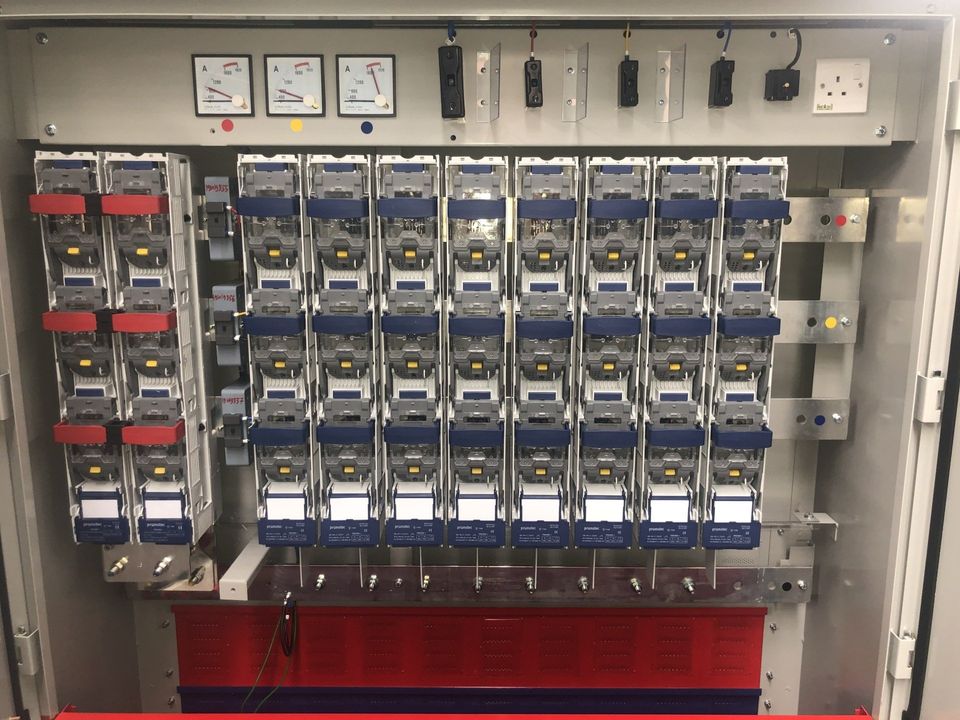

- Eight(8) set of outgoing DIN Type Fuse Switch Disconnector rated at 400 Amps
- 24 (8 x 3) 250 Amps DIN fuse link

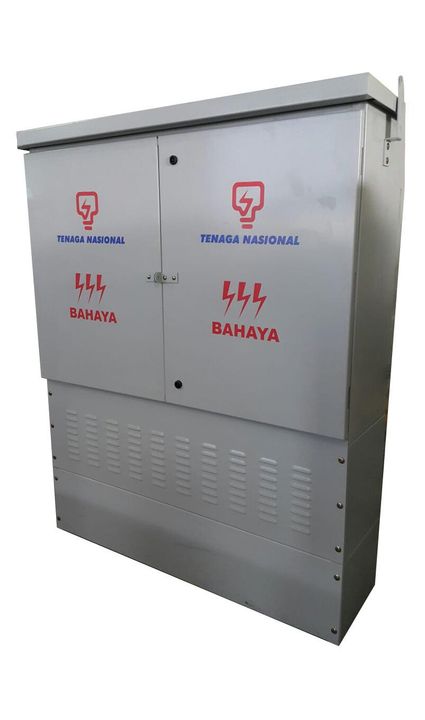

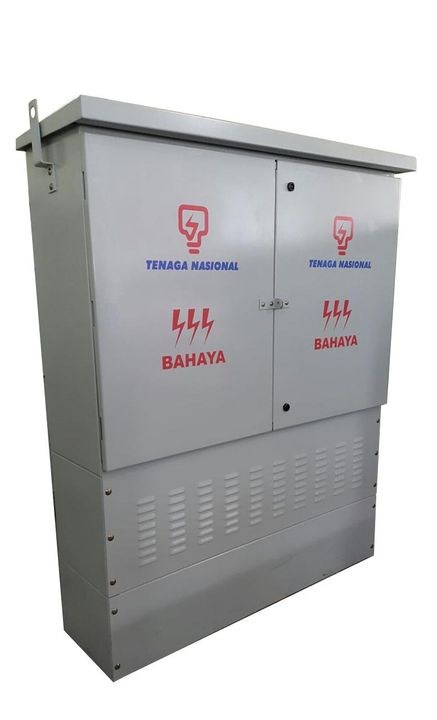

- Electro Galvanized feeder pillar housing
- Three (3) hinges, Two (2) Cam Lock, Two (2) Padlocking
- Suitable for outdoor use in the tropical zone with maximum ambient temperature of 40°C and mean annual temperature of 28°C with heavy rainfall and high humidity up to 100%
Features

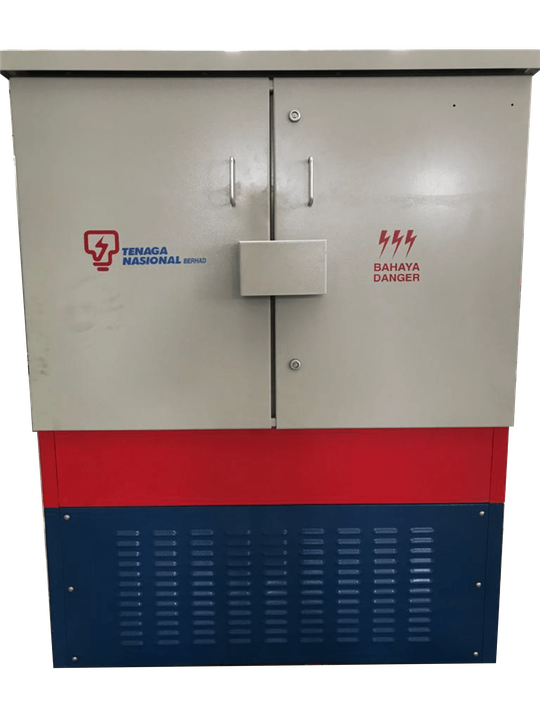

- 1385mm (L) x 1730mm (H) x 370mm (W)
- Tested to IP33
- Two (2) sets of incoming Link Switch Disconnector
- Door design to be opened not less than 160 degree
- One set of three (3) busbar mounted ring type current transformer, accuracy class 1, 7.5VA and 1600/5 Amps ratio
- Three (3) nos, single scale maximum demand indicator with 30 minute time delay operation by 1600/5 Amps
- Three (3) nos, 6A type fuse and base
- One (1) no, 60A type fuse and base
- One (1) no, neutral link wire to the neutral busbar
- One (1) no, 13A 3 pin switch socket
- Outgoing terminal for 4 cores 300mm2 XLPE cable
Testing Types
- Tested carried out to relevant standards as stipulated in the TNB Distribution Feeder Pillar specification at both CPRI and SIRIM Malaysia Test Labs
